Description

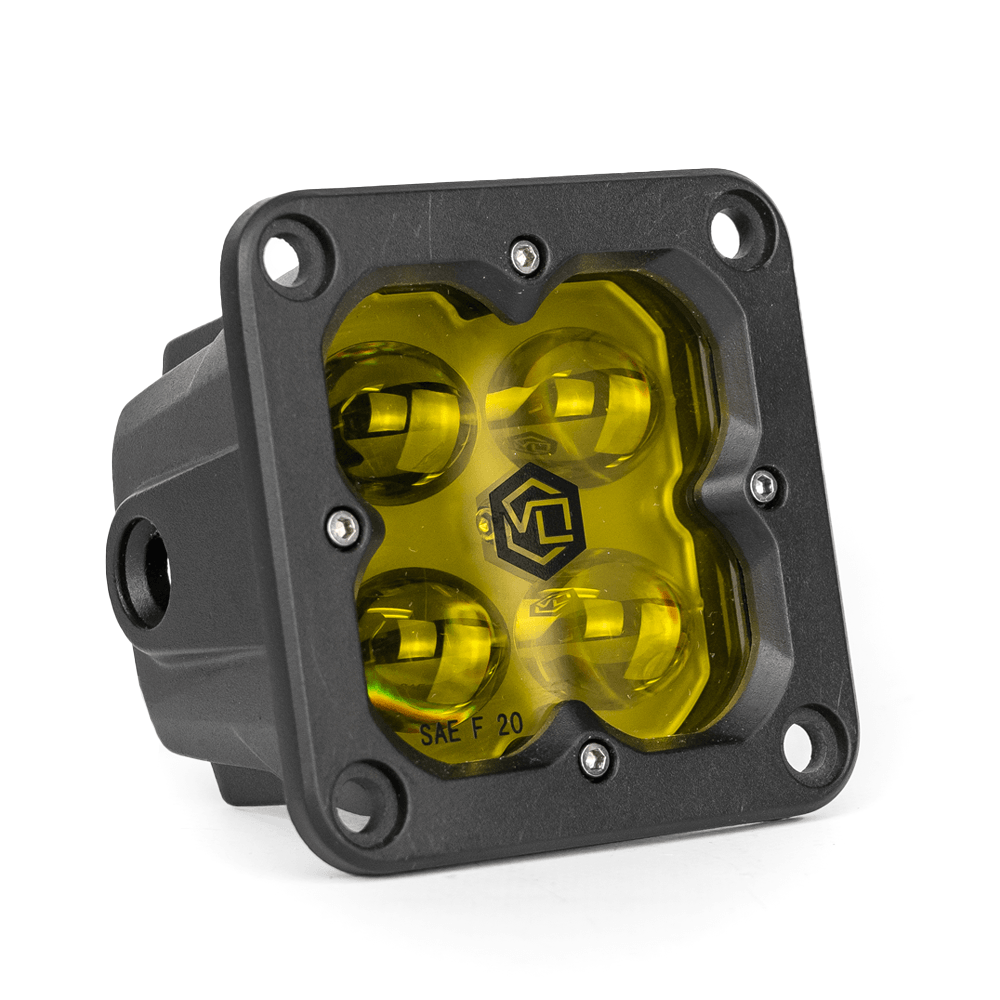

The FNG 3 is the latest in 3 inch pod technology. It's packed with 4 5w high output Osram chips that will exceed your expectations. The different reflector gives you multiple beam pattern options, from SAE street legal compliance to intense off-road capability.
It's all connected by a rugged weather-resistant enclosure that can be mounted practically anywhere and will withstand demanding environments.
The next generation of lighting
The FNG series combines power, intensity and style in a redesigned compact build. Level up your driving experience with advanced optics, controlled beam patterns, and intense brightness.
The FNG series is crafted to provide the brightness you need to light the trails and highways ahead.
Features:
- High-Intensity Osram LEDs: The FNG series is our Biggest and Brightest light pod ever! Each circuit board is composed of 4x 5W high-intensity Osram LED chips.
- IP67 Waterproof Rate: FNG 5 inch Series meets the? IP67 water and standard dustproof rate. It is 100 percent protected against solid objects like dust and sand. It has been tested to work for at least 30 minutes under 15cm to 1m of water.

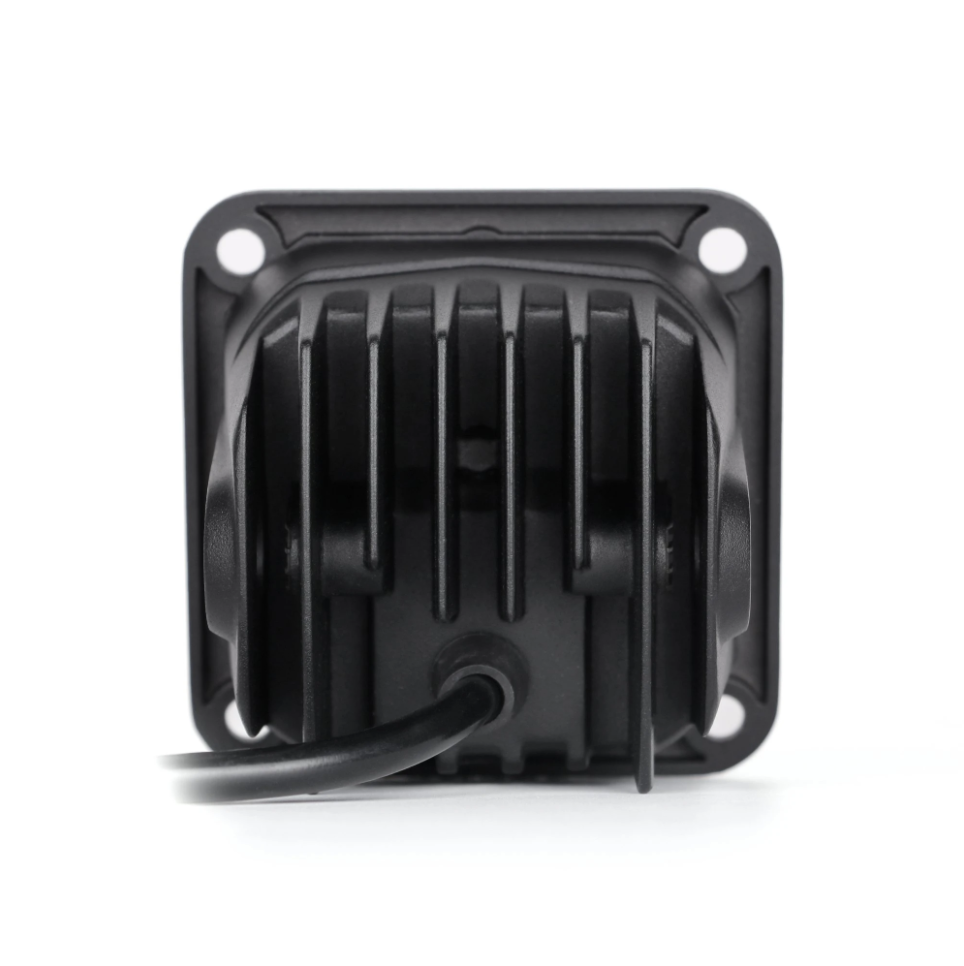

- Thermal Management: Unlike other designs, the FNG series are equipped with large heat fins that allow the LED chips to cool properly for extended use. Engineered to perfection the FNG Series will brighten your adventures to the max.
- TIR Optic Technology: The TIR (Total Internal Reflection) is an internal lens within the light housing. It captures and emits more light directly from the LED chip than your traditional light housing (such as a parabolic reflector).
Beam Patterns
- SAE Driving: The beam has a spread of 60 degrees. It used to work in conjunction with your high beams and has more focus and aim than a traditional spot beam. If you need that extra boost of street legal output looks no further.
- SAE Fog: Beam provides an 80-degree spread. It should replace your factory OE fog light assemblies and create an intense wide that will light up the ditches and the road ahead. Our street-legal fog light replacements with focused optics and intense LED Osram chips will keep you safe in any weather.
- Hyper Spot: The beam pattern is best used for maximum distance in off-road or racing applications. The beam pattern is concentrated in a circular hotspot straight ahead of the vehicle. These can be very effective for off-road high-speed motor vehicles. The Intense series Hyper Spot cubes give you the off-road reassurance you need.
- Flood: Creates a large vast and tall soft beam pattern. The best suitable application would be used for work lights or reverse backup lights.
QUANTITY: 2x Street Legal Light Pods
- LIGHT OUTPUT: 2000 Lumens (Per Light)
- DIMENSIONS: 3.0 inch x 3.0 inch x 2.6 inch
- CERTIFICATION: SAE Y J581
- OPTICS: Fogt
- COLOR: Amber
- SHAPE Flush
- LED CHIP: Osram
- WATTS: 20w
- CURRENT: 1.6A at 12v
- IP RATING: IP67
- WARRANTY: Lifetime
- PART NUMBER: 12220
- UPC: 628242450776

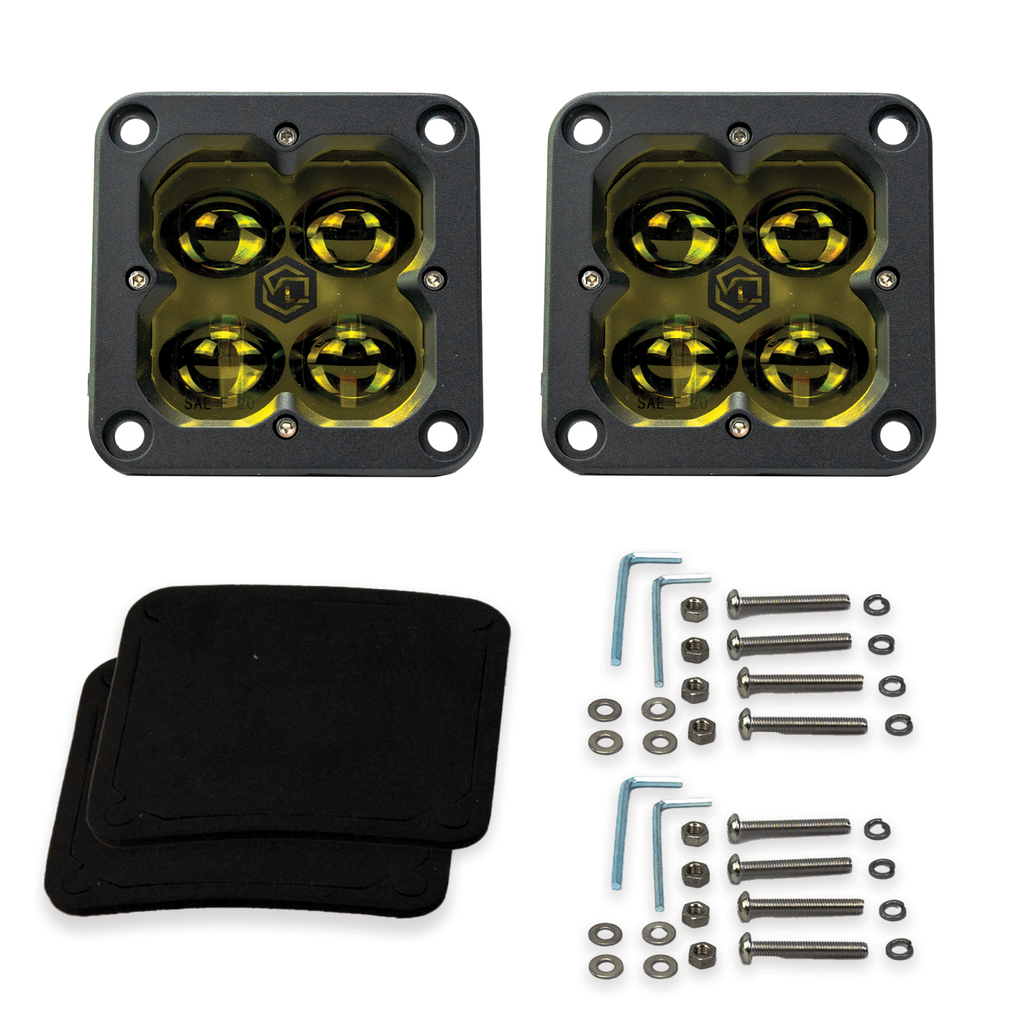

- (2) FNG Intense Pod Light
- (1) Wire Harness/Hardware
Industry Leading Warranty
Vivid Lumen Industries provides an industry-leading warranty on all products for manufacturing defects or product failure.
